CNC Laser Cutting

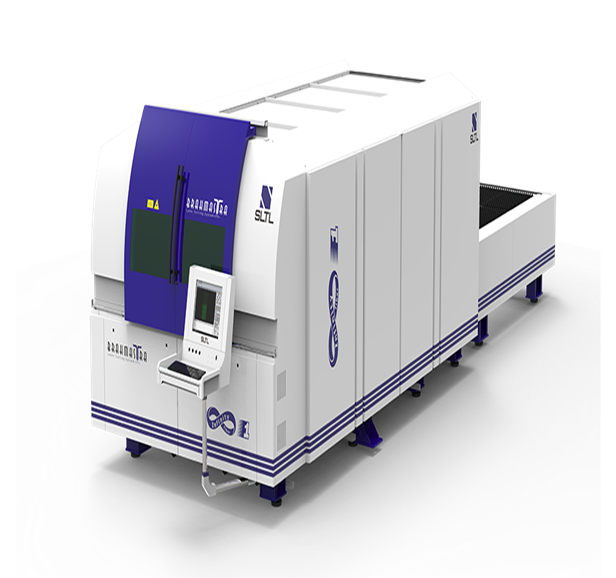

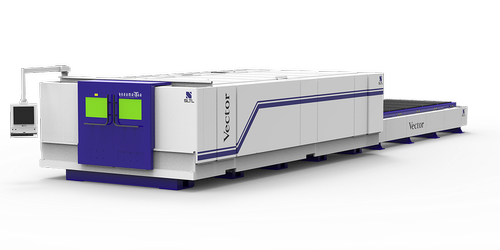

Computer Numerical Control (CNC) based Laser Machine provide a finest and precision in a cutting of sheet Metal. In our plant we have two CNC Laser cutting machine. One is Infinity F1 and other is Vector .The maximum Working range of Infinity F1 laser Cutting machine is 1500mm -3000mm with double bed. Vector Laser Cutting machine has 1550mm-3050mm maximum working range with a single bed. Laser Cutting machine increase the productivity also it Saves the time.It has Automatic Pallet Changer with Fly and Normal Cutting system.

Infinity F1 Capacity - 3 KW

Vector Capacity - 1KW

We are capable of cutting metal sheet

MILD STEEL (MS)

0.3 mm to 16 mm Thickness (O2)
AIR CUT till 1.5 mm.

STAINLESS STEEL (SS)

0.3mm to 12mm Thickness (O2, N2)
AIR CUT till 1.5 mm.

Aluminium

0.5 mm to 8 mm Thickness (02, N2)
AIR CUT till 2 mm.

Looking an Adequate Solution for your Company?

Contact us today,We love hearing from you !

Get In Touch
